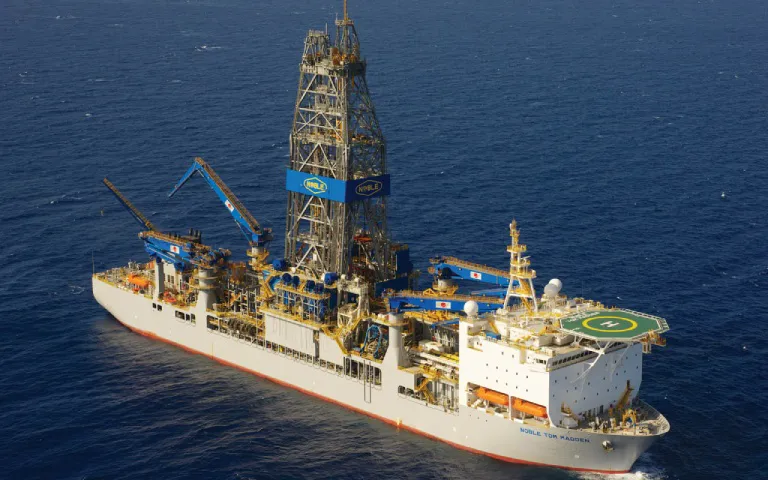

Rig Specifications – Noble Tom Madden
Download Summary PDF
General
| Rig Type: | Drillship |
| Rig Design: | Gusto P10000 |
| Builder: | Hyundai Heavy Industries |
| Year Built / Upgraded: | 2014 |
| Classification: | DNV +1A1, Ship Shaped Drilling Unit, DYNPOS-AUTR, BIS, EO |
| Flag: | Liberia |
| MODU Code: | 2009 |
Ratings & Dimensions
| Water Depth: | 12,000 ft |
| Drilling Depth: | 40,000 ft |
| Length: | 752 ft |
| Breadth: | 118 ft |
| Depth: | 61 ft |
| Draft (Operating/ Transit): | 36 ft / 36 ft |
| Moonpool: | 115 ft x 41 ft |
| Hook Load: | 2,500 kips on main hoist; 1,500 kips on auxiliary hoist |
| Setback Capacity: | 3,500 kips |
| Quarters Capacity: | 210 |
Capacities
| Fuel: | 42,848 bbls |
| Drill Water: | 21,085 bbls |
| Liquid Mud: | 14,586 bbls |
| Brine Storage: | 7,915 bbls |
| Base Oil Storage: | 7,204 bbls |
| Bulk Storage: | 14,690 cu ft |
| Sack Storage: | 10,000 sacks |
Equipment
| Derrick: | NOV DDBN; 80 ft x 60 ft x 210 ft; 1,250 st main & 750 st aux |
| Drawworks: | AHD-1250; 9,000 hp main / SSGD-750, 4,500 hp aux |
| Top Drive: | NOV TDX-1250; 150,000 ft-lbs @ 130 RPM fts |
| Rotary: | NOV Model RST-755; 75-1/2 in Main, NOV Model RST-605; 60-1/2 in Aux |
| Iron Roughneck: | NOV ST-160C; 140,000 / 160,000 ft-lbs. m/u / b/o torque |
| BOP: | (2) NOV Shaffer NXT; 6 ram; 18-3/4 in x 15k psi |
| Motion Compensator: | NOV-CMC; 1,000 kips compensated/2,500 kips locked; 25 ft stroke and NOV Active Heave Drawworks |
| Riser Tensioner / Stroke: | NOV-Shaffer-FT-H; 133 joints 75 ft complete; 50 ft, 40 ft, 30 ft, 20 ft, 10 ft, 5 ft pup joints |
| LMRP: | (2) NOV Shaffer SL 18-3/4 in x 10 psi annulars |
| Control System: | NOV Shaffer MUX System |
| Pipe Handling System: | (2) NOV HydraRacker-model HR-IV-ER w/ 30 kips lifting capacity |
| Solids Control: | (6) NOV-Brandt VMS-MS Shakers, NOV-Brandt-VMS-MS1 Mud Cleaner w/ sander and desilter capability |
| Diverter: | NOV-Shaffer-CSO; 75.5 in x 1K psi w/ 21.5 in packer element working pressure |
| Cranes: | (1) NOV - OC4475RCE 165T, (3) NOV - OC4000KCE 100 T |
| Mud Pumps: | (4) National 14-P-220; 2,200 HP |
| Engines: | (6) Himsen 16H32/40v w/8,000Kw per engine, W/6 generator with rating of 7,600Kw per generator at 0.8 power factor |
| Station Keeping: | Kongsberg DP3 K-Pos DP22 (Main) & DP12 (Backup) |
| Thrusters: | Rolls Royce (6) 5,000kw-DP3-fully retractable and maintainable Thruster |
