General

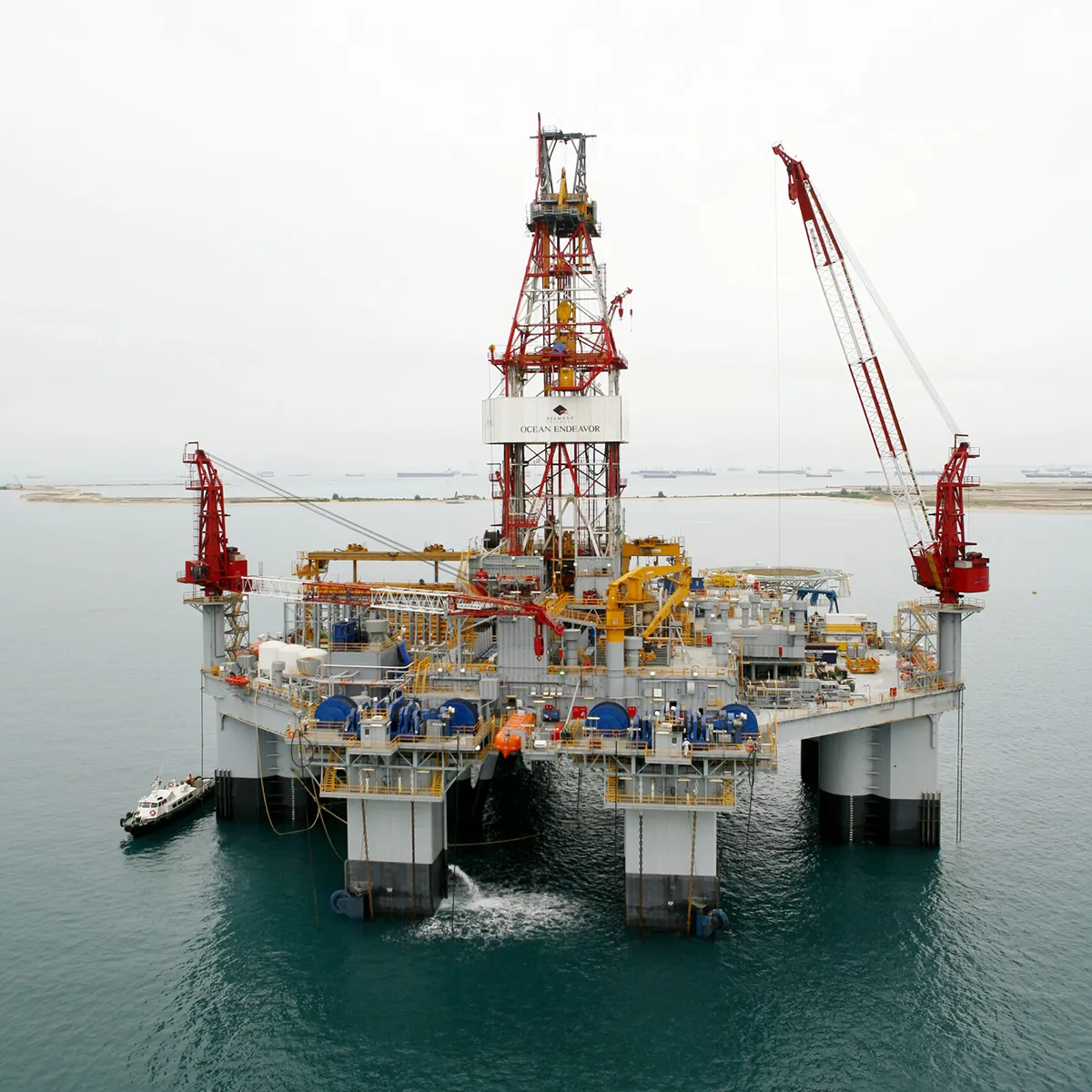

| Rig Type | Semisubmersible |
| Rig Design | Enhanced Odeco Victory Class |
| Year Upgraded | 2009 |
| Year Entered Service | 1975 |
| Classification | ABS, +A1 Column Stablised Drilling Unit |
| MODU Code | 1989, 2001 Edition |
| Overall Length | 306 ft long x 306 ft wide (main deck) |
| Draft | 74.5ft (22.7m) Drilling, 41.5ft (12.67m) Transit |
| Airgap | 45.5 ft (13.8 m) |
| Displacement | 42,570MT |
| Variable Deck Load | 6,000MT Drilling / 5,000MT Transit |
| Transit Speed | 4 knots (towed) |
| Water Depth | 6,000 ft (max), 250 ft (min) |
| Drilling Depth | 35,000ft (10,668m) |
| Accommodation | 140 people |
| Hook load | 2MM lbs |
| Moonpool | 91 ft x 25 ft |
Storage Capacity
| Liquid Mud | 9,675 bbls (1538 m3) |
| Base Oil | 3,200 bbls (509 m3) |
| Brine | 3,200 bbls (509 m3) |
| Bulk Cement | 15,500 ft3 (2464 m3) |
| Bulk Bentonite | 3,600 cuft |
| Bulk Barite/Gel | 7,200 ft3 (1145 m3) |
| Sack Storage | 6,000 sacks |
| Fuel | 6,234 bbls (991 m3) |
| Drill Water | 13,169 bbls (2,094 m3) |
| Potable Water | 2,904 bbls (462 m3) |
Drilling Equipment
| Derrick | Dreco, 170 ft x 48 ft x 46 ft, static hook load capacity of 2,000 kips |
| Drawworks | 1 x NOV 2040-UDBEL(L), 2,941 kW |
| Motion Compensator | 1 x NOV CMC-H-25 1,000 kips capacity with 25ft stroke |
| Rotary Table | 1 x NOV T-6050, 60.5“, hydraulic, 908 t |
| Top Drive | 1 x NOV PS2-1000, 1,470 kW |
| Tubular Handling | 1 x NOV TF-975 Hydratong |
| Fingerboard Capacity | DP - 18,900ft (210 Stds) up to 6 ⅝” DP - 14,490ft (161 Stds) up to 5 ⅞ 216 Stds 5-1/2” DP, 21 Stds DC |
| Mud Pumps | 4 x NOV 14-P-220, 7,500 psi |
| Solids Control System | 4x Brandt / AX-1 Multisizers |
| Iron Roughneck | 1 x Varco AR 3200 |
Subsea Equipment
| Diverter | Vetco KFDS 21-1/4", 500psi diverter with 2 x 20" flow line |
| Dual BOP | No |
| BOP Stack | 1 x Hydril 18 ¾” 15,000 psi 5 ram preventer Vetco H4 ExF 15K, wellhead connector |
| LMRP | 2 x Hydrill DL 18 ¾” 10,000 psi annular preventers, |
| C&K Manifold | 15K |
| Marine Riser | Shaffer 21" FT-GB, 75ft long per joint,1,275 ft |
| Tensioners | 6 x NOV N-line tensioning system. Total capacity 2,400 kips with 50ft. Stroke |
| XT Carts | 1 x 60 t aux cart |
Unique capabilities and enhancements
| Rig Moves | 12-point mooring spread, compatible with rapid anchor release system for ultra efficient demob from well site. |
| Usable Deck Area | Over 1500m² usable deck space enabling client’s huge flexibility to tailor the rig to operational needs and remain self-sufficient for multiple phases of operations |
| Variable Deck Load | High variable deck load provides exceptional operational flexibility allowing the rig to ballast to transit draft with minimal need to unload derrick pipe storage, offload bulk fluids, or heavy equipment |
| Heave Compensation | Equipped with CMC-H-1000 capable of compensating hook loads up to 1,000,000 lbs and drilling in rig heave up to 3m |
Power Generation
| Main Power | 7 x 1,603 kW CAT 3516-B 1,200 rpm |
| Electrical Power | 7 x 2,500 KVA, CATO, 4,16kV, 60 Hz |
| Emergency Power | 1 x 404 kW, CAT 3412, 687 KVA, 480V, 60 Hz |
Cranes
| Main Cranes | 1 x 53.5 t, Seatrax S7224 with 160 ft boom 2 x 80 t, Seatrax S9040 with 180 ft boom |
| Subsea Cranes | N/A |
| X-Mas Tree / BOP | 1 x 350 t NOV BOP handling cart |
| Other | 1 x NOV KMCVT-1891 Knuckleboom Crane |
Station Keeping / Propulsion System
| Mooring System | 12-point mooring system capable, 8 point mooring system standard, additional 4 point on request. |
| Mooring Winches | 8 x Amclyde CTW 350/52 combination chain/ wire mooring winches |
| Thrusters | N/A |
| DP System | N/A |
| Position Reference Systems | N/A |
Other Information
| MPD | No |
| Burner Booms | N/A |
| Dual Well Centers | No |
| Automation | Hybrid drilling package with an integrated driller’s chair |
| Red Zone Management | No |
| On the Go | Yes |
| H56 Enabled | No |
| Data Infrastructure | Real Time Monitoring |
| Other | Well hopping with tripsaver Capacity to hang off casing |
