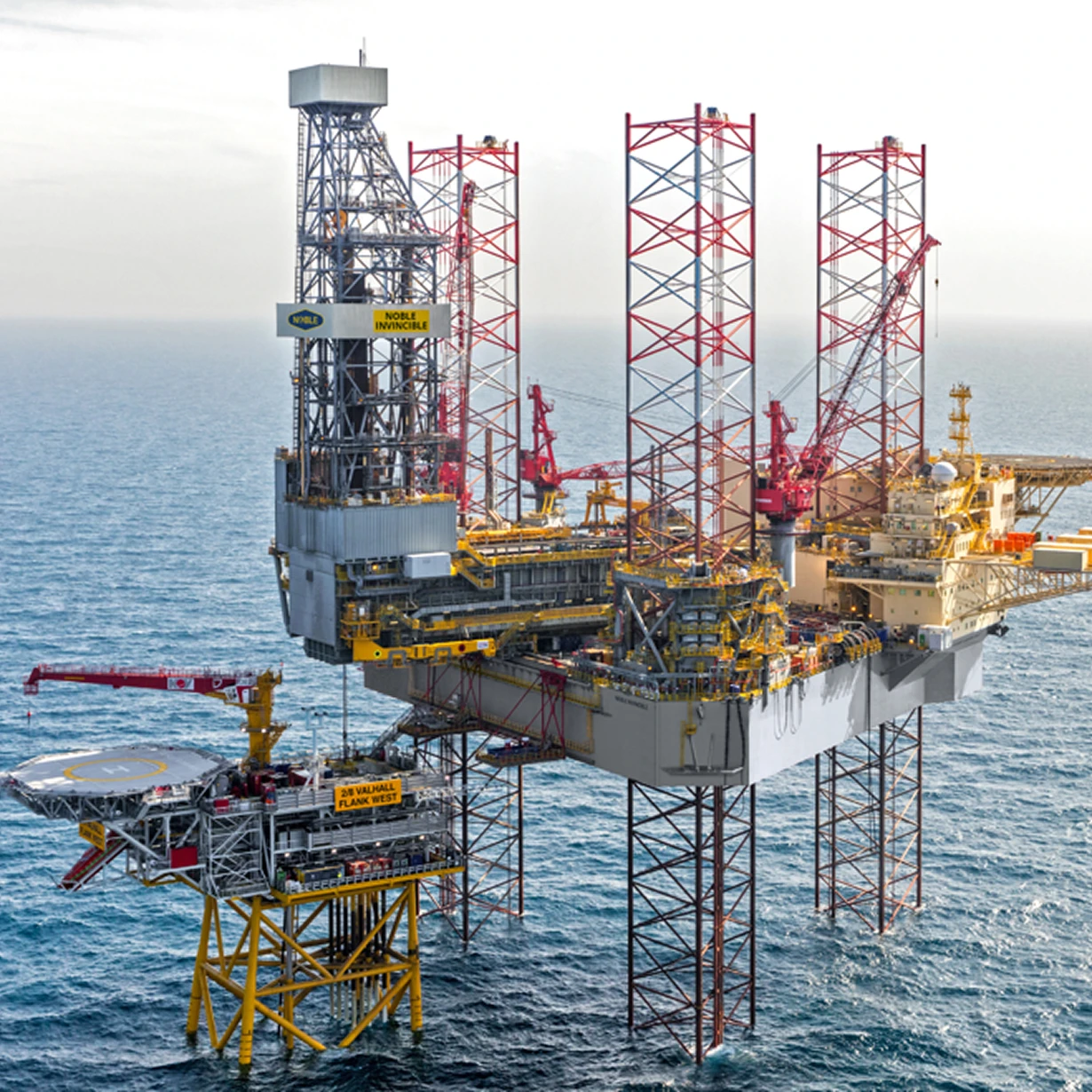

Engineered for Extreme Offshore Performance
The Noble Invincible combines high-capacity drilling, advanced equipment, and proven stability in harsh environments. Designed for efficiency and safety, it enables longer campaigns with fewer interruptions and greater operational control.
Rig Specifications – Noble Invincible
Download Summary PDF
General
| Rig Type: | Jack-up |
| Rig Design: | Gusto MSC CJ70 X150 MD |
| Builder: | DSME Korea |
| Year Built / Upgraded: | 2014 |
| Classification: | DNV 1A1 Self Elevating Drilling Unit Drill(N) HELDK, CRANE(N),EO and class verification of UK. MODU, SOLAS and Marpo |
| Flag: | Marshall Islands |
| MODU Code: | 2009 |
Ratings & Dimensions
| Water Depth: | 492 ft |
| Drilling Depth: | 40,000 ft |
| Length: | 291 ft |
| Breadth: | 345 ft |
| Depth: | 39,4 ft |
| Leg Length: | 675 ft |
| Leg Spacing: | 229,7 ft / 218,5 ft |
| Draft (Operating/ Transit): | 26,2 ft transit |
| Cantilever Envelope: | 110 ft x 73 ft (x-y skidding system) |
| Variable Deck Load: | Up to 24,200 kips |
| Hook Load: | 2,000 kips |
| Setback Capacity: | 2,270 kips |
| Quarters Capacity: | 179 |
Equipment
| Derrick: | NOV capacity 2,140 kips |
| Racking Capacity: | 3 ½”- 14” Tubulars |
| Drawworks: | NOV SSGD-1070 - 2,1Mlbs; 5,750 HP continuous |
| Top Drive: | NOV HPS-1000 -AC; 92,120ft-lbs continuous torque |
| Rotary: | NOV RST; 49-1/2 in |
| Iron Roughneck: | 2 ea NOV KT 14,000 Iron roughneck w/ mud bucket |
| BOP: | Shaffer NXT 21 ¼” 5,000psi All manifolds etc 15,000psi |
| LMRP: | N/A |
| Control System: | NOV |
| Pipe Handling System: | 2 x NOV Hydraracker- HR IV – ER. Catwalk Shuttle and Pipe handling Gantry crane. Powered mousehole cluster for 3 x tubular |
| Solids Control / System: | (5) NOV VSM 300 Multisizer |
| Diverter: | Drill-Quip KFDJ 500 (30” ID”) |
| Cranes: | (3) Molde Cranes 100ton max and 60t@52,5ft |
| Mud Pumps: | (4) National 14P”-2200Hp Triplex 7,500psi |
| Engines: | (4) 2,940kW ea |
| Jacking System: | NOV BLM- C170 |
Capacities
| Fuel: | 10,718 bbls |
| Drill Water: | 18,468 bbls |
| Liquid Mud: | 13,344 bbls |
| Brine Storage: | 4,777 bbls |
| Base Oil Storage: | 3,261 bbls |
| Bulk Storage: | 15,570 cu ft |
| Sack Storage: | 5,000 sacks |
