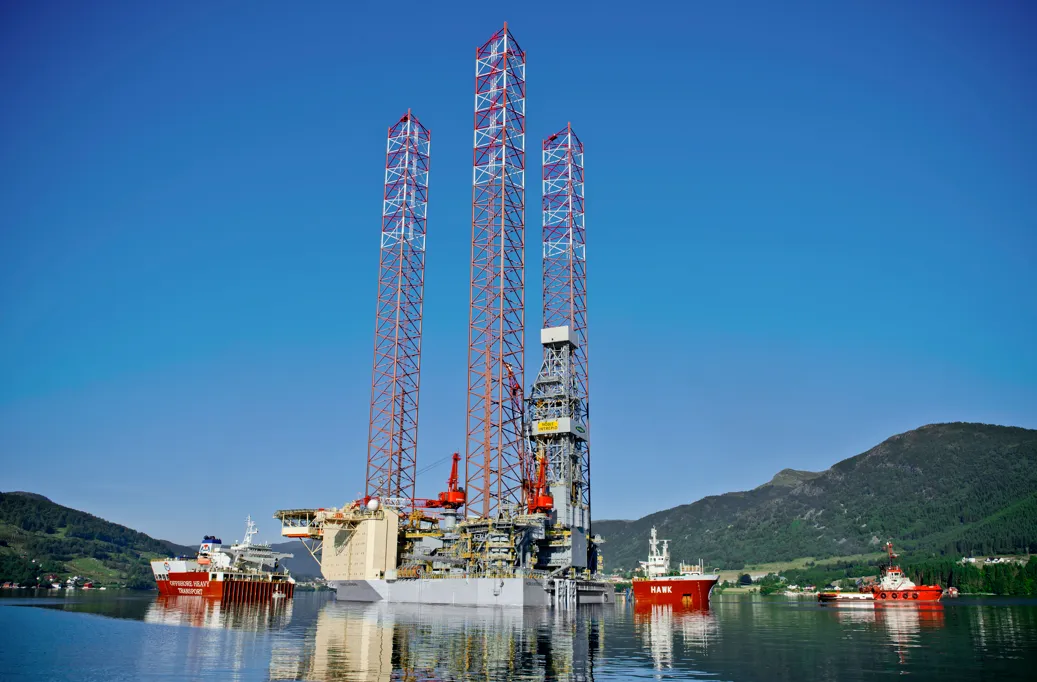

Rig Specifications – Noble Intrepid
Download Summary PDF
General
| Rig Type: | Jackup |
| Rig Design: | Gusto MSC CJ70 X150 MD |
| Builder: | Keppel Fels Shipyard Singapore |
| Year Built / Upgraded: | 2014 |
| Classification: | DNV 1A1 Self Elevating Drilling Unit Drill(N) HELDK, CRANE(N),EO and class verification of UK. MODU, SOLAS and Marpo |
| Flag: | Marshall Islands |
| MODU Code: | 2009 |
Ratings & Dimensions
| Water Depth: | 492 ft |
| Drilling Depth: | 40,000 ft |
| Length: | 291 ft |
| Breadth: | 345 ft |
| Depth: | 39.4 ft |
| Leg Length: | 678 ft |
| Leg Spacing: | 229,7 ft / 218,5 ft |
| Draft (Operating / Transit): | 26,2 ft transit |
| Cantilever Envelope: | 108 ft x 73,5 ft (x-y skiddingsystem) |
| Variable Deck Load: | Up to 26,400 kips |
| Hook Load: | 2,000 kips |
| Setback Capacity: | 2,280 kips |
| Quarters Capacity: | 150 |
Capacities
| Fuel: | 10,718 bbls |
| Drill Water: | 21,448 bbls |
| Liquid Mud: | 9850 bbls |
| Brine Storage: | 4,982 bbls |
| Base Oil Storage: | 3,459 bbls |
| Bulk Storage: | 15,570 cu ft |
| Sack Storage: | 5,000 sacks |
Equipment
| Derrick: | NOV capacity 2,140 kips |
| Racking Capacity: | 3 ½” -14” tubulars |
| Drawworks: | NOV SSGD-1070 - 2,1Mlbs; 5,750 HP continuous |
| Top Drive: | NOV HPS-1000 -AC; 92,120ft-lbs continuous torque |
| Rotary: | NOV RST; 49-1/2 in |
| Iron Roughneck: | 2 ea NOV ARN-200 Iron roughneck w/ mud bucket |
| BOP: | Main: Shaffer NXT 18 ¾” 15,000psi |
| LMRP: | N/A |
| Control System: | NOV |
| Pipe Handling System: | 2 x NOV Hydraracker- HR IV – ER. Catwalk Shuttle and Pipe handling Gantry crane. Powered mousehole cluster for 3 x tubular |
| Solids Control / System: | (5) NOV VSM Multisizer |
| Diverter: | Vetco Grey KFDJ 500 (30” ID”) |
| Cranes: | (3) Molde Cranes 100ton max and 60t@52,5ft |
| Mud Pumps: | (4) National 14P”-2200Hp Triplex 7,500psi |
| Engines: | (4) 2,940kW ea |
| Jacking System: | NOV BLM- C170 |
