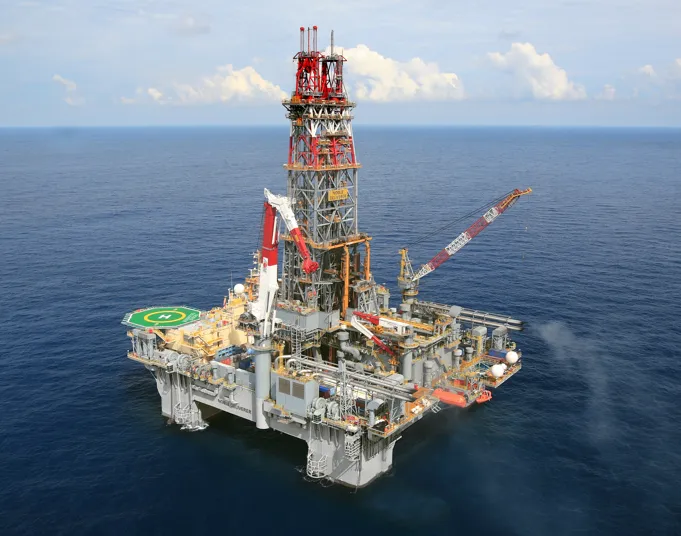

The Noble D rigs are high-specification semisubmersibles designed for resilient offshore operations. Equipped with robust station-keeping systems, efficient drilling packages, and strong variable deck load capacity, they deliver consistent, safe, and reliable performance in demanding environments where stability and versatility are critical.
Download Summary PDF
| Rig Type: | Semi-Submersible |
| Rig Design: | DSS-21 Column Stabilized |
| Year Built / Upgraded: | 2008 |
| Year Entered Service | 2008 |
| Builder: | KFELS, Singapore |
| Flag: | Marshall Islands |
| Classification: | ABS |
| MODU Code: | 1995 |
| Overall Length | 384 ft |
| Draft | 67.3 ft (operating), 31.8 ft (transit) |
| Depth | 62.3 ft |
| Displacement | 53,718 mt |
| Variable Deck Load | 7,000 mt |
| Transit Speed | 4 knots |
| Water Depth | 10,000 ft (max), 310 ft (min) |
| Drilling Depth | 40,000 ft |
| Accommodation | 180 |
| Hook Load | 2MM lbs (main), 1.5MM lbs (aux) |
| Moonpool | 141 ft x 29.5 ft |
| Liquid Mud: | 9,774 bbls (active), 10,356 bbls (reserve) |
| Base Oil: | 4,840 bbls |
| Brine: | 4,840 bbls |
| Bulk Cement: | 24,014 cuft |
| Bulk Bentonite | 7,319 cuft |
| Bulk Barite: | 7,319 cuft |
| Sacks: | 5,000 |
| Fuel: | 28,516 bbls |
| Drill Water: | 13,120 bbls |
| Potable Water: | 5,220 bbls |
| Derrick: | 210 ft x 72 ft x 39 ft, 2,500 kips main, 1,500 kips aux |
| Drawworks: | 1 x Wirth / GH 6000 EG-AC (main), 1 x Wirth / GH 4500 EG-AC (aux) |
| Motion Compensator: | NOV CMC (main, aux), AHC (main) |
| Rotary Table: | NOV RST-605, 60 ½” main, NOV RST-605 60 ½” aux |
| Top Drive: | 1 x NOV HPS 1000, 90,800 ftlbs @ 130 rpm (main), 1 x NOV HPS 750, 64,175 ftlbs @ 94 rpm (aux) |
| Tubular Handling: | 2 x NOV Hydraracker |
| Fingerboard Capacity: | 336 stds 6 5/8, 5 ½”,5 7/8”, 18 stds DC, 90 stds CSG. |
| Mud Pumps: | 4 x Wirth TPK 7 1/2" x 14" , 2,200HP, 7,500 psi |
| Solids Control System: | 8 x MI Swaco BEM 650 |
| Iron Roughneck: | 2 x NOV Hydratong, 100,000 ftlbs m/u, 148,000 ftlbs b/o |
| Diverter | 1 x Hydrill FS, 21”, 500 psi |
| Dual BOP | Yes |
| BOP Stack | 1 x GE Hydrill with 6 ram cavities 18 ¾” 15K,, GE Vetco SHD H4 18 3/4" 15k wellhead Connector |
| LMRP | 2 x Hydrill GX 18-10, BTM FLG 18 ¾”, 10K |
| C&K Manifold | 15K psi |
| Marine Riser | Aker Kvaerner Subsea, 21” OD, CLIP, 75 ft joints, 10,000ft |
| Tensioners | 8 x NOV N-Line Tensioners 450 kips each with 50 ft stroke |
| XT Carts | Yes |
| Water Depth: | The combination of DP and moorings provides the rig with the unique capability to operate from shallow waters (298 ft) to ultra-deep waters (9,625 ft) |
| Data Integration | Rig is outfitted with real time data monitoring applications |
| Main Cranes | 1 x 60t Favelle Favco, 1 x NOV Knuckleboom pipe handling crane |
| Subsea Cranes | 1 x 165t NOV AHC Subsea Knuckleboom Crane |
| X-Mas Tree / BOP | 2 x 50t Xmas Tree Overhead Crane |
| Other | N/A |
| Mooring System | 8 x Mooring Lines |
| Mooring Winches | 4 x 273t Brohl / CAMW - 35 |
| Thrusters | 8 x 4,000 kW Wartsila LIPS FS3500-671/NU |
| DP System | Kongsberg SDP 32, DP2+ |
| Position Reference Systems | 2 x HPR / 4 x DGPS |
| Main Power | 8 x 4,960 kW Wartsila 16V26 at 900 rpm |
| Electrical Power | 8 x 4,840 kW 11kV Generators |
| Emergency Power | 1 x 1,500 kW 690V CAT 3516B |
| MPD | Safekick with Weatherford RCD |
| Flare Booms | No |
| Dual Well Centers | Yes |
| Automation | Cyberbase, MMC |
| Red Zone Management | No |
| On the Go | Yes |
| H56 Enabled | Rig Flow, Rig Pulse |
| Data Infrastructure | Real Time Monitoring |
