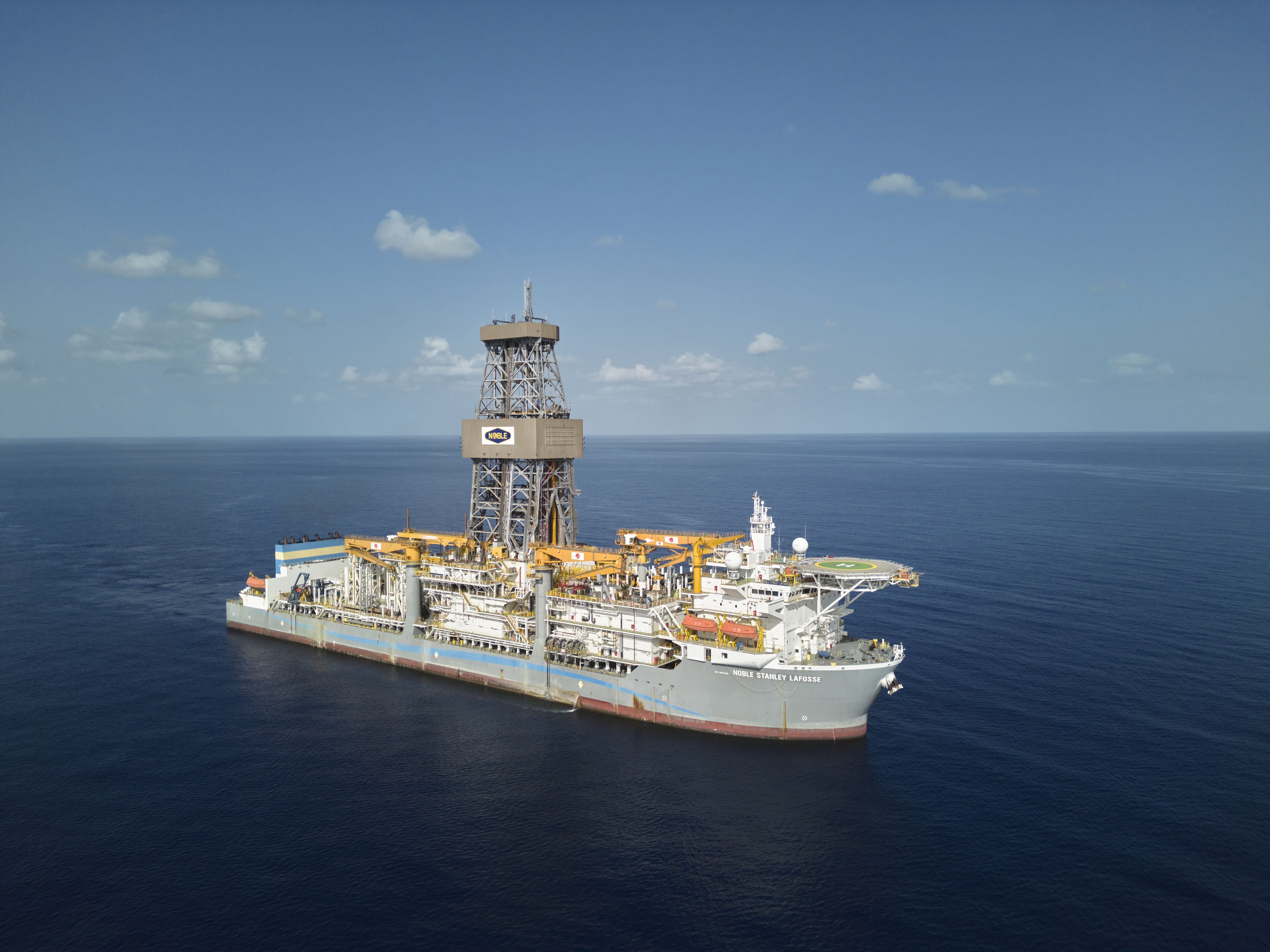

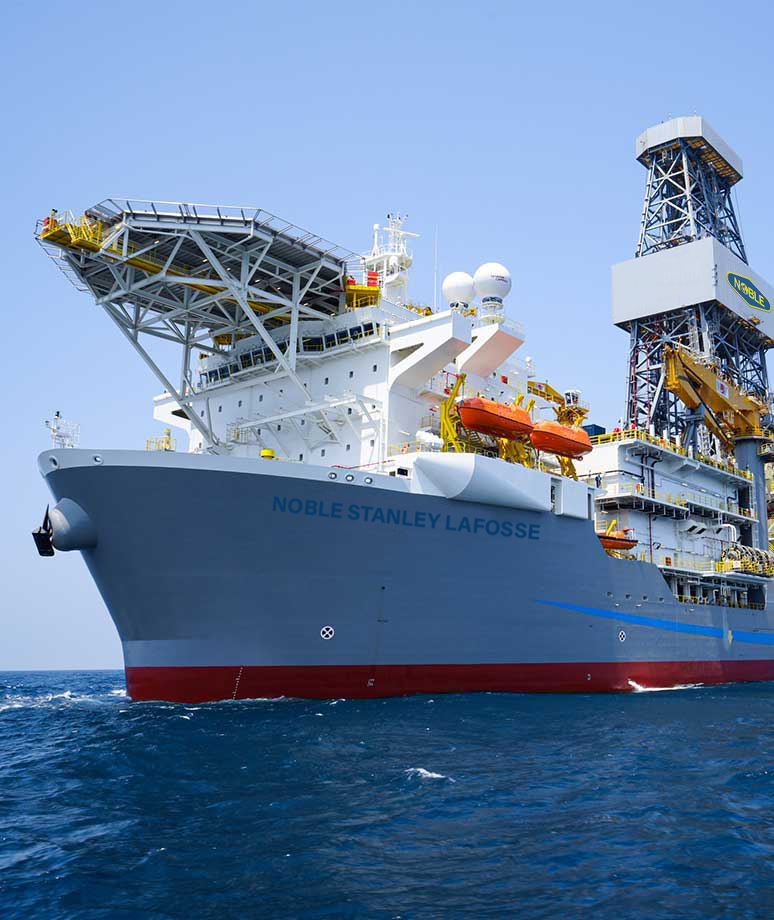

Noble Stanley Lafosse

Where dependable performance meets efficient offshore well delivery.

Noble Stanley Lafosse

High-specification drilling unit supporting consistent development operations.

The Noble Stanley Lafosse is a capable offshore drilling unit engineered for reliable, efficient well delivery. Equipped with robust drilling systems, solid hook load capacity, and operational flexibility, it supports development programs with a focus on safety, uptime, and performance consistency.

Rig Specifications – Noble Stanley Lafosse

Download Icon Download Summary PDF

General

Rig Type:Drillship
Rig Design:Samsung 12000 Double Hull
Builder:Samsung Heavy Industries
Year Built / Upgraded:2014
Classification:ABS, A1, Drillship, AMS, ACCU, DPS-3, EFP-AM
Flag:Liberia
MODU Code:2009
Overall Length:748 ft
Draft:39 ft (operating) / 28 ft (transit)
Depth:62 ft
Displacement:96,000 mt
Variable Deck Load:22,000 mt
Transit Speed:11.5 knots
Water Depth:12,000 ft
Drilling Depth:40,000 ft
Accommodation:200
Hook Load:2.4MM lbs (main), 2.0MM lbs (aux)
Moonpool: 115 ft x 41 ft

Storage capacity

Liquid Mud:19,277 bbls
Base Oil Storage:9,434 bbls
Brine Storage:15,700 bbls
Bulk Cement:15,960 cuft
Bulk Bentonite:8,049 cuft
Bulk Barite:23,940 cuft
Sacks10,000
Fuel:46,500 bbls
Drill Water:15,700 bbls
Potable water:8,176 bbls

Subsea equipment

Diverter1 x NOV Shaffer, 21 ¼”, 500 psi
Dual BOP:Yes
BOP Stack (dual):2 x 6 ram cavities each: 2 x NOV-Shaffer NXT 18¾" 15k triple; GE Vetco SHD H4 18 3/4" 15k wellhead Connector
LMRP:2 x NOV-Shaffer 18¾" 10k annular; GE-Vetco ExF H4 18¾"15k High Angle Release LMRP connector
C&K Manifold:SRI, 15,000 psi
Marine Riser:NOV-Shaffer 21" OD, 90 ft joints, Class FT-H–DGD Type, 3.5 million lbs, 10,000 ft;
Tensioners:8 x NOV Dual SWRT 225 kips each with 50 ft stroke
XT CartsYes

Drilling equipment

Derrick:160 ft x 60 ft x 80 ft derrick to handle 135 ft tubular with 2 x NOV 2,500 kips crown block
Drawworks:2 x NOV AHC 6,700kW (main, aux)
Rotary Table:1 x Varco BJ RST 75-1/2" hydraulic (main) 1 x Varco BJ RST 60-1/2” hydraulic (aux)
Top Drive:TDX-1250, 2,500 kips rotating (main) TDX-1250, 2,500 kips rotating (aux)
Tubular Handling:2 x Hydra-Racker System HR-IV, 2x Hydratong MPT-200 (for 3 1/2” to 9 3/4” tool-joints)
Fingerboard Capacity:252 stds 6 5/8”, 110 stds 5 7/8”, 105 stds Casing, 35 stds DC
Mud Pumps:4 x NOV 14-P-220, 7,500 psi
Solids Control System:7 x VMS 300 shale shakers
Iron Roughneck:Hydratong MPT TF-975 w/ TE-1190 (2 ea.); 147,000 ft-lbs.

Unique capabilities and enhancements

Mud System:The rig is equipped with an actuated mud control system that improves control of mud transfers and fluid management during drilling operations
Logistics:The rig is equipped with dual transfer decks and a mechanical workshop located on the rig floor. These features improve equipment accessibility, reduce unnecessary equipment movement, and allow maintenance and repairs to be carried out more efficiently, helping to reduce NPT.
Pipe Handling:A camera system mounted on the HydraRacker allowing the Driller/AD to monitor the latches on every stand of drill pipe being removed from the derrick.
Mud System: The Trip Tanks system can be operated directly from the Driller’s Cyberbase chair, allowing better control and reducing the need for additional personnel to operate the equipment locally.

Power generation

Main Power:6 x 8,000 kW, Himsen at 720 rpm
Electrical Power:6 x 7,760 kW, 11kV, generators
Emergency Power: All 6 main engines are rated as emergency generators

Station keeping/propulsion system

Mooring System:N/A
Mooring Winches:N/A
Thrusters:6 x 4,500 kW, UUC 405 Rolls Royce fixed pitch, in water removable thrusters
DP System:Kongsberg SDP-32 System for DPS-3 Operations
Position Reference Systems:2 x HPR / 3 x DGPS

Cranes

Main Cranes:4 x 85 t electro-hydraulic knuckle-boom cranes at 18 m (59 ft) radius
Subsea Cranes:N/A
X-Mas Tree / BOP:BOP Gantry crane 2x240 t
Other:2 x Xmas tree skids 120 t, 1 x multipurpose skid 1,000 t

Other systems

MPDMPD manifold with dual flowpaths, 2 x 3” Cortec chokes, 2 x 6” Cortec chokes, Coriolis sensors and automated line up functionality. Safekick Control System, AFG IRJ, PMCP capable.
Burner Booms:N/A
Dual Activity:Yes
Automation:Cyberbase, NOVOS
Red Zone Management:Helin, Camera-Based
On the Go:Yes
H56 Enabled:Rig Flow, Rig Pulse
Data Infrastructure: Real Time Monitoring
Other:N/A
